IKK 16

SKU: orb1301008
FeaturedFeatured Product

Description

IKK Inhibitor VII is a potent and selective small molecule inhibitor of IκB kinase, with greatest potency against IKK-2 (IC50 = 40 nM). This compound is a valuable research tool for studying NF-κB signaling in cellular models of inflammation, immunity, and cancer.

Research Area

Cell Biology, Immunology & Inflammation, Metabolism Research, Neuroscience, Pharmacology & Drug Discovery, Signal Transduction

Images & Validation

−
IKK 16

Key Properties

−
CAS Number873225-46-8
MW483.63
Purity99.61% (May vary between batches)
FormulaC28H29N5OS
SMILESO=C(N1CCC(CC1)N1CCCC1)c1ccc(Nc2nccc(n2)-c2cc3ccccc3s2)cc1
TargetIκB/IKK,LRRK2,TNF,Serine/threonin kinase,NF-κB,P-gp,Interleukin
SolubilityEthanol:< 1 mg/mL (insoluble or slightly soluble);10% DMSO+40% PEG300+5% Tween 80+45% Saline:3.3 mg/mL (6.82 mM);DMSO:23.64 mg/mL (48.88 mM);H2O:< 1 mg/mL (insoluble or slightly soluble)

Bioactivity

−
Target IC50
LRRK2:50 nM|IKKϵ:70 nM|IKKα:200 nM|IKKβ:40 nM
In Vivo
IKK-16 is orally bio-available in rats and mice, and it inhibits LPS-induced TNF-α release in vivo and neutrophil extravasion in thioglycollate-induced peritonitis.
Read more...
In Vitro
IKK-16 inhibits TNFα-stimulated expression of the adhesion molecules E-selectin, ICAM-1, and VCAM-1 in HUVEC cells. Although IKK-16 shows activity in the IFNγ-induced expression of β2 microglobulin or HLA-DR, its potency in these assays is 4- to 10-fold weaker.
Read more...
Cell Research
IKK 16 is prepared in DMSO and stored, and then diluted with appropriate medium before use. Human umbilical vein vascular endothelial cells line (HUVECs) are cultured in DMEM supplemented with 10% fetal bovine serum, streptomycin, and penicillin. The cells is grown at 37°C in a humidified 5% CO2 atmosphere. Cells are pretreated with IKK 16 (10 μmol/mL) for 1 hr. The cells are then cultured with TGF-β1 (20 ng/mL) and AT-RvD1 (20 ng/mL). After incubation, the gene expressions of Nrf2 and Smad7 are determined by RT-PCR. The protein expression of Nrf2 and IκBα are determined by Western blot.
Read more...
Animal Research
IKK 16 is prepared in DMSO and diluted with saline or PBS.Rats and MiceIKK 16 is tested in two animal models. First, its efficacy to inhibit TNFα release into plasma upon LPS-challenge in the rat is determined. IKK 16 is dosed sc (30 mg/kg) or orally (30 mg/kg) 1 h prior to the LPS-challenge. Four hours after the challenge, plasma is collected and the systemic TNFα levels are analyzed using a commercially available ELISA kit. Both routes of administration of IKK 16 at the indicated dose results in a significant inhibition of 86% (sc) and 75% (p.o.). In a second experiment, IKK 16 is also active in the thioglycollate-induced peritonitis model in the mouse. The maximal inhibition of neutrophil extravasation in this model is about 50% at a dose of 10 mg/kg sc. MiceTwo-month-old male C57BL/6 mice receive LPS (9 mg/kg body weight) and PepG (3 mg/kg body weight) in 0.9% saline (5 mL/kg body weight) intraperitoneally. Sham mice are not subjected to LPS/PepG, but are otherwise treated the same way. At 1 hour after LPS/PepG co-administration, mice are treated either with IKK 16 (1 mg/kg body weight i.v.) or vehicle (5 mL/kg body weight 10% DMSO i.v.). At 24 hours the experiment is terminated and organ and blood samples are collected for quantification of organ dysfunction and/or injury. Mice are randomly allocated into four different groups: (1) sham+vehicle (n=10); (2) sham+IKK 16 (n=3); (3) LPS/PepG+vehicle (n=9); (4) LPS/PepG+IKK 16 (n=10).They are for reference only.
Read more...

Storage & Handling

−
Storagestore at low temperature | Powder: -20°C for 3 years | In solvent: -80°C for 1 year | Shipping with blue ice/Shipping at ambient temperature.
Expiration Date12 months from date of receipt.
DisclaimerFor research use only

Alternative Names

−
LRRK2, IκB kinase, IκB, Inhibitor, inhibit, IKK16, IKK-16, IKK2, IKK Inhibitor VII, IKK1, IKK 16, IKK, IkB/IKK, IkB, Leucine-rich repeat kinase 2, I kappa B kinase

Similar Products

−
    1. CHUK Antibody
    Item 1 of 3

    CHUK Antibody [orb523099]

    ELISA,  IHC,  WB

    Human, Mouse

    Rabbit

    Polyclonal

    Unconjugated

    100 μl, 50 μl
    1. Phospho-IKK alpha (Ser176) Rabbit Polyclonal Antibody
    Item 1 of 3

    Phospho-IKK alpha (Ser176) Rabbit Polyclonal Antibody [orb184418]

    FC,  IF,  IHC-Fr,  IHC-P

    Bovine, Canine, Equine, Human, Porcine, Rabbit, Rat, Sheep

    Mouse

    Rabbit

    Polyclonal

    Unconjugated

    50 μl, 100 μl, 200 μl
    1. Goat anti-CHUK Antibody
    Item 1 of 1

    Goat anti-CHUK Antibody [orb167700]

    ELISA,  WB

    Human

    Goat

    Polyclonal

    Unconjugated

    100 μg
    1. IKK alpha/CHUK Rabbit Polyclonal Antibody
    Item 1 of 2

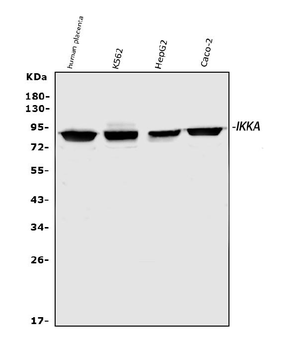

    IKK alpha/CHUK Rabbit Polyclonal Antibody [orb196280]
